1673 X3™ Connector Boat®
The heart and soul of the RescueONE® modular water response system.
STANDARD FEATURES FOUND ON 1673 X3™
STIFFBack™
DOUBLE HULL
Built to meet and exceed USCG regulations, the StiffBACK™ double hull greatly increases its stiffness, safety, and durability. Flotation foam is bonded within the hull, assuring your RescueONE® Connector Boat® will float even when completely flooded. The inside of the hull is lined with a slip resistant bedliner, and the flat grey color prevents glare
QUICKFit™
Railing System
Every RescueONE® Connector Boat® is surrounded with a patented, connecting rail, allowing an unlimited number of boats to be connected together in any formation needed.
SecureTRAC™
Inside the gunwale rail is our exclusive SecureTRAC™, which allows for easily securing equipment without the use of tools or expensive connection devices.
FlexSEAT™ Boxes
Removable FlexSEAT™ boxes provide seating and equipment storage, with three different configurations to fit the needs of the mission as shown here. A simple two lock attaching system allows the boxes to be moved quickly in an emergency, or throw them overboard if needed. FlexSEAT™ boxes float.
OPTIONAL FEATURES FOR THE 1673 X3 CONNECTOR BOAT™
Shown with optional Side Scan Sonar

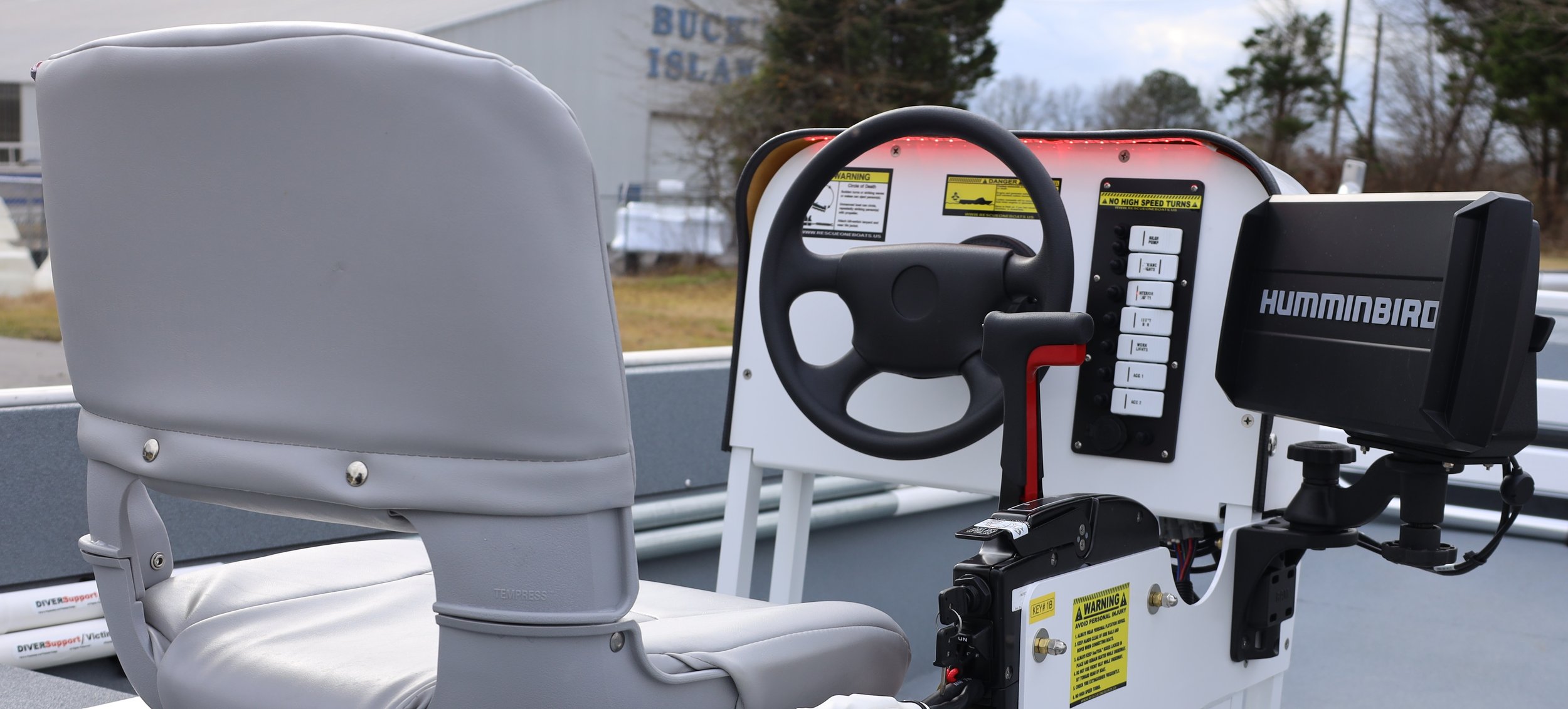

GEN3™ ControlCONSOLE™
Strong aluminum material is powder coated, the seat is adjustable (front to rear), and has replaceable cushions. The lighted dash includes a 12V outlet, electrical breaker and switch panel, engine remote controls and harnesses, and SafeT® steering system, all of which meet all USCG, NMMA, and ABYC safety standards.
DIVERSupport/VictimLIFT ™
Deploys in seconds. Built of anodized aluminum, weighs 35 lbs, supports 300 lbs, is easily removable, and folds into the boat for storage. The new design allows it to double as a hoist to lift a victim from the water. Includes two HOISTlevers™. Fits any Rescue ONE® Connector Boat®.
CLICK FOR VIDEO
LightRACK™
The new narrow design is stronger, more compact and built of anodized aluminum. Folds backward out of the driver’s way, includes top and side mount plates for additional work lights and internal wiring harness. Fits only GEN2 and GEN 3 model 1673 X2 and 1673 X3 Connector Boats®.
Options for LightRACK™
o LED4Pak. Scene lights for LightRACK™ include four 27W LED lights which are totally adjustable in endless configurations.
o Emergency LED Mini Light Bar in RED, BLUE, or AMBER
Interior Lights
Two 16’ no-glare soft red LED gunwale rope interior lights.

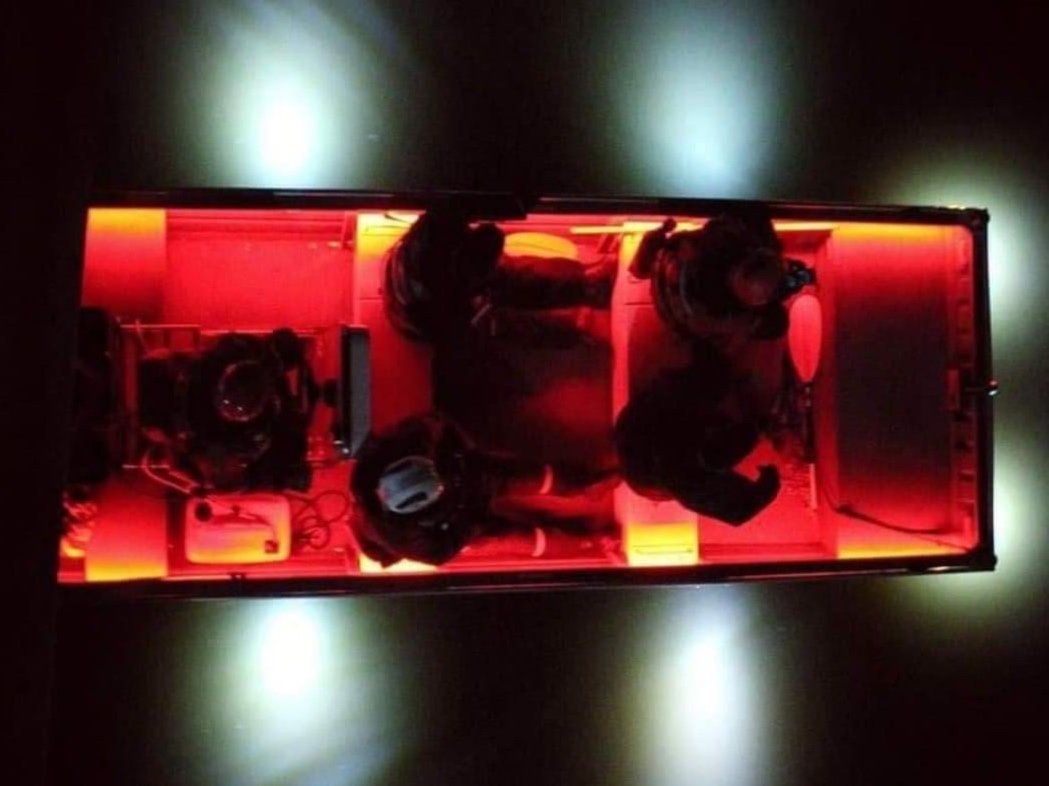

NightVISION™ Light Package
INCLUDES 8 high-intensity, submersible LED lights which are flush mounted in the hull with 2 front, 2 back, and 2 on each side. They surround the boat with light on all sides.
SUNShade™ Top
The top is high-quality marine grade fabric, and has a lightweight strong aluminum frame, nylon positioning straps, and a protective boot. It folds back and is easily removable. When used on a model 1673 X2™ or 1673 X3™ with the SecureTRAC™ feature, it can be moved forward/backward. The boat also will accommodate two SUNShades™.
166 FIREBoat™
Using the standard 1673 X3™ hull with lower USCG weight capacities it is a more effective, more nimble, lower maintenance waterfront firefighter for a fraction of the cost of the big boys, and it will operate in much shallower water. Equipped with the RescueONE® FireBOAT Pump™ which is powered by a 20hp V-twin gasoline engine, comes with a primer, monitor, intake hose, and floating strainer. It pumps 90gpm at 125psi or 490gpm at low pressure. It can be quickly removed from the boat if the boat is needed for other missions.
Sonar Options
Sonar technology plays a crucial role in water recovery operations. Eighty percent of our boats go out equipped with side scan sonar. We have even developed a bracket to mount the transducer so it reads the flow of water off our hull when underway more consistently. Also, our mount for the sonar head is designed to work well with or consoles and to provide the team with flexibility.
We can install any brand of sonar you choose, however over the years, we have come to the conclusion that Humminbird brand Helix side scan units provide the best combination of affordability, ease of use and performance. This is especially true when the settings that Humminbird recommends for first responders searching for targets are installed.
RescueONE® 1673 X3™
Trailer Options
RescueONE 1673-SS™
Designed for our 1673 Connector Boat® Materials are selected not for their cost, but for their strength and quality. The exclusive SpaceSAVER™ feature allows the tongue to swing and storage in 30 inches shorter space than our original design. Spare tire and mount, steel coil plastic coated safety cables, LED lighting included. FunneLOAD™ side guide and front walkboard system is designed to make loading up a snap. STEELpoly™ bunk runners have no carpet to rip, and no wood to rot. This trailer is painted with the highest quality automotive paint available and is built of heavy-duty steel.
Also available as an aluminum trailer (in lieu of painted steel) for salt and brackish waters.
RescueONE TWINTransport™
The TWINTransport™ trailer stores, transports and launches two boats and can be towed by a standard half-ton truck. The bottom boat is launched and the top boat is lowered into the water by a 9,500lb winch controlling its articulating upper rack. The entire process can take less than 4 minutes with a little practice. Fits any existing RescueONE® Connector Boat® and with optional bunks, most inflatable boats. Also available in a galvanized version (in lieu of painted steel) for salt and brackish waters.
Strong, stiff steel frame, AutoSURGE™ hydraulic brakes, high-speed radial tires, Vault® hybrid hubs (50,000-mile service) on a tandem axle carriage which is adjustable if you should change location of loads in the future. DOT-approved and waterproof LED lights including backup lights and spare tire with mount are all standard.
RescueONE® TWINTransport™ Optional Equipment
SwingRACK™
This is a storage rack for storing and transporting small outboards. It swings out for loading/unloading of outboards much easier by two persons.
Click image for Video.
SlideRAMP™
Allows easy removal of an inflatable from the top rack of double trailers without launching the bottom boat. Use off rear or off either side.
Click image for video.
Storage Locker™
2.5CF Two and a half cubic feet of lockable storage space. (Can mount 1 or 2)
Storage Basket
It has a mesh bottom and is handy for storing extra fuel cell and more. (Can mount 1 or 2)
Galvanized Coating
Hot dip galvanized coating (inside and outside tubing) in lieu of paint (outside only) is available for trailers used in brackish or saltwater.
Adjustable Bunk System
This system allows steady support for inflatable boats on upper rack, on lower or on both.
Heavy Duty Aluminum Wheels
Are available and come with ST 205-75-R14 high-speed steel reinforced radial tires.
SKYLights™
108 watts of fully adjustable and telescopic LED scene lights
Safety Floor
Expanded metal mesh Safety Floor provides solid, safe footing in mud or non-flat areas and prevents all too common slip and fall mishaps while loading bottom boat.
